Mini Servo Motor SG90 Plastic Gears

75.00 EGP

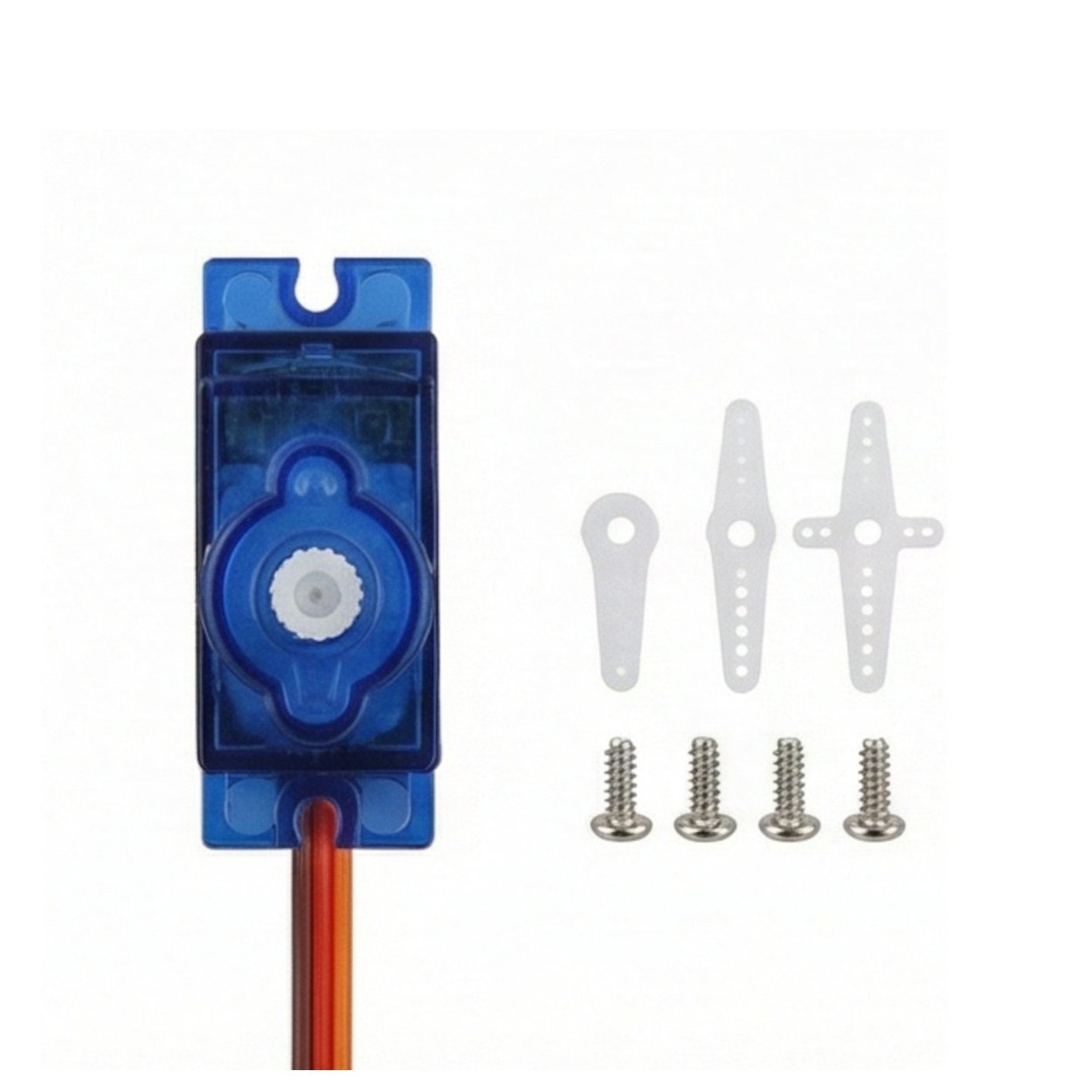

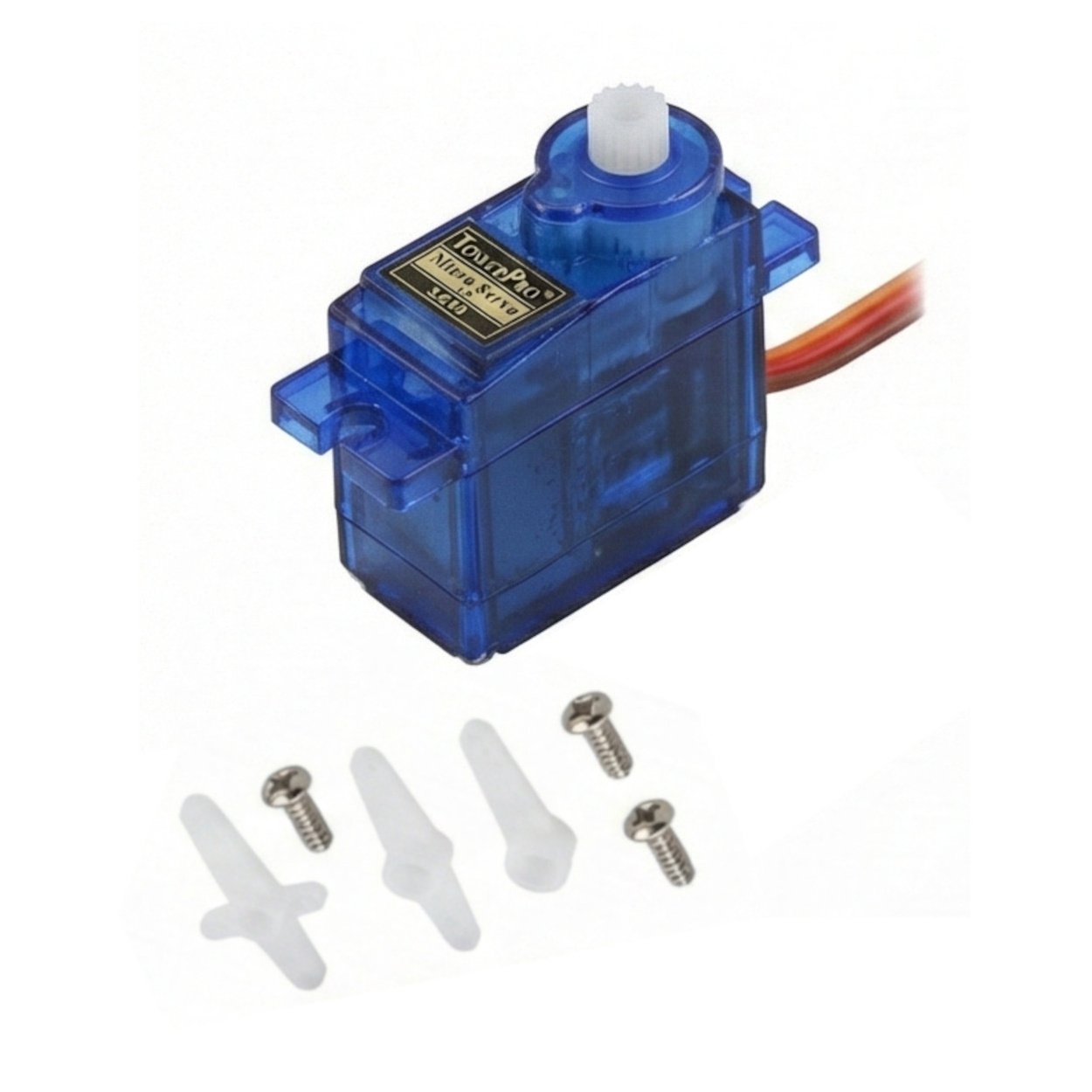

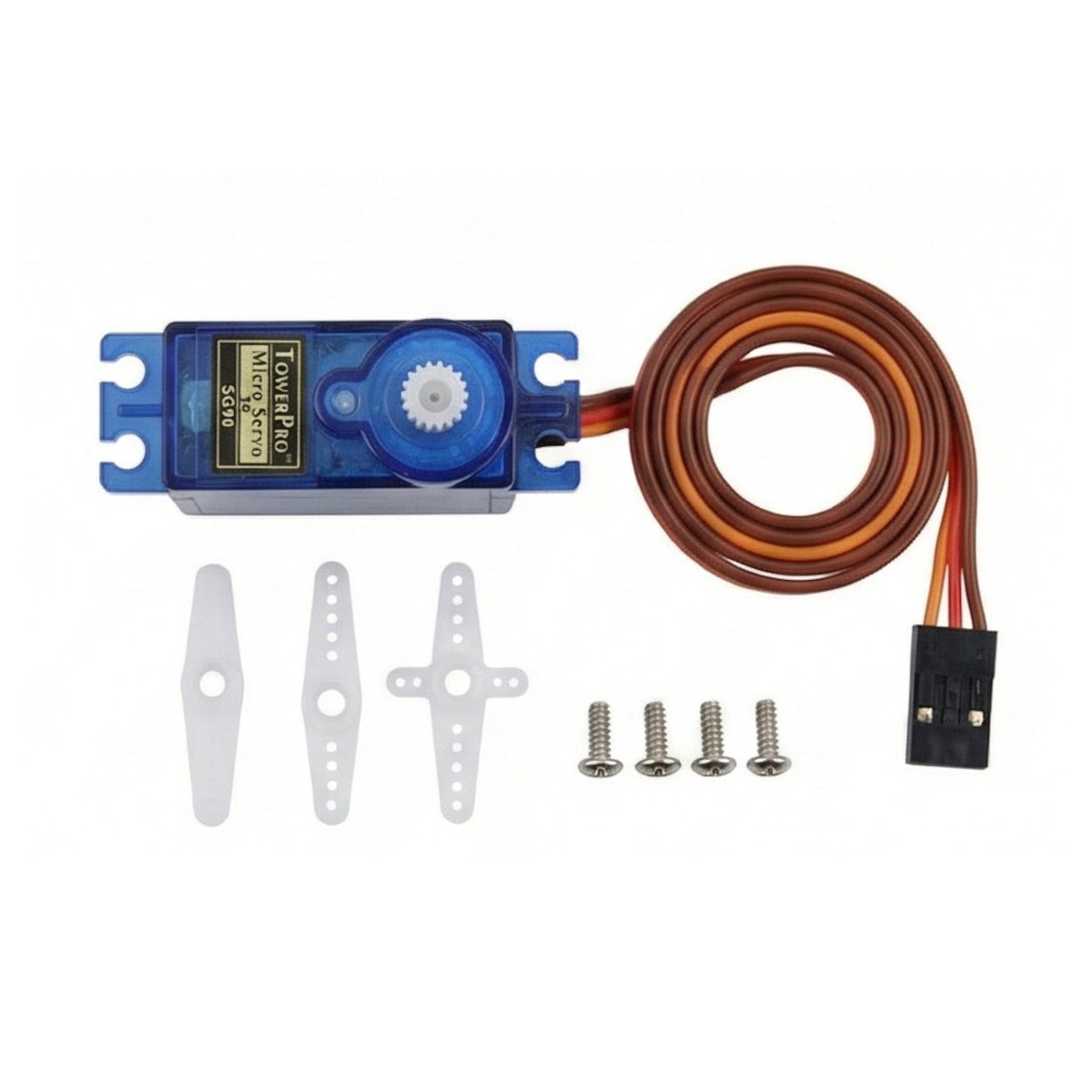

This high-precision, lightweight micro-servo motor is a popular choice for mechatronics and robotics projects. It allows for precise control of rotation angles up to 180° using pulse-width modulation (PWM) signals from a microcontroller (such as an Arduino, ESP32, or Raspberry Pi). Technical Specifications: Operating Voltage: 4.8V to 6.0V DC Stall Torque: 1.8 kg·cm (at 4.8V) Rotation Angle: 180° (0-180°) Operating Speed: 0.12 seconds / 60° (at 4.8V) Gear Type: Lightweight, friction-resistant plastic/nylon gears Weight: Only 9 grams Dimensions: 22.2mm × 11.8mm × 31mm Pulse Width (Dead Band Width): 7µs Pinout: Includes a tri-color cable with a standard 2.54mm pitch connector: Signal (orange/yellow): Receives PWM signal from the microcontroller for angle control. VCC (red): Positive terminal for operating voltage (4.8V - 6V). GND (brown/black): Negative terminal/ground (0V). Key Features: Compact and lightweight: Easily integrated into tight enclosures and 3D printed designs. Easy programming: Fully compatible with standard servo libraries (such as the Servo.h library in Arduino). Complete accessories: Comes with several plastic servo horns in various shapes and their mounting screws. Main Applications:
