IR Infrared 3-pin Obstacle Avoidance

35.00 EGP

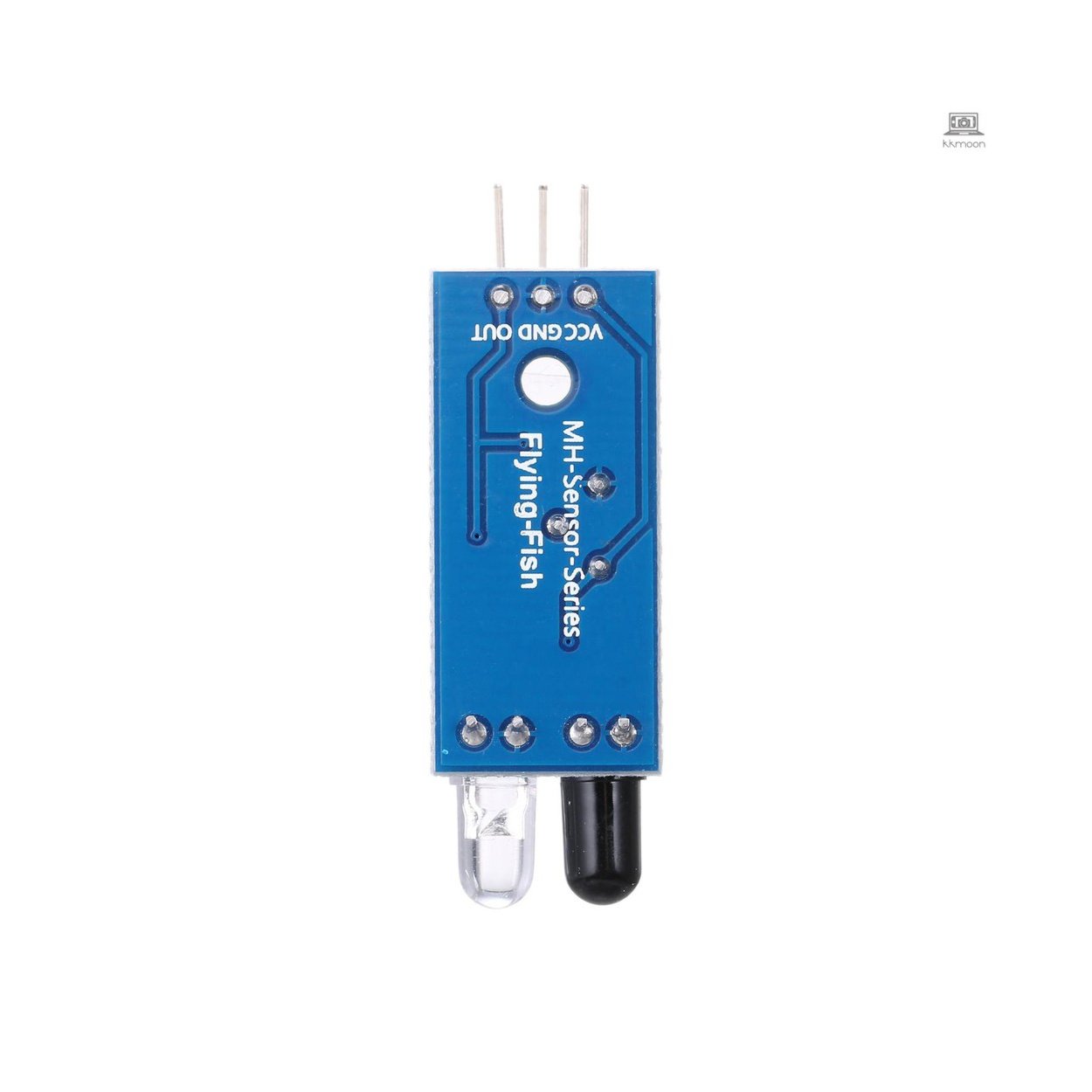

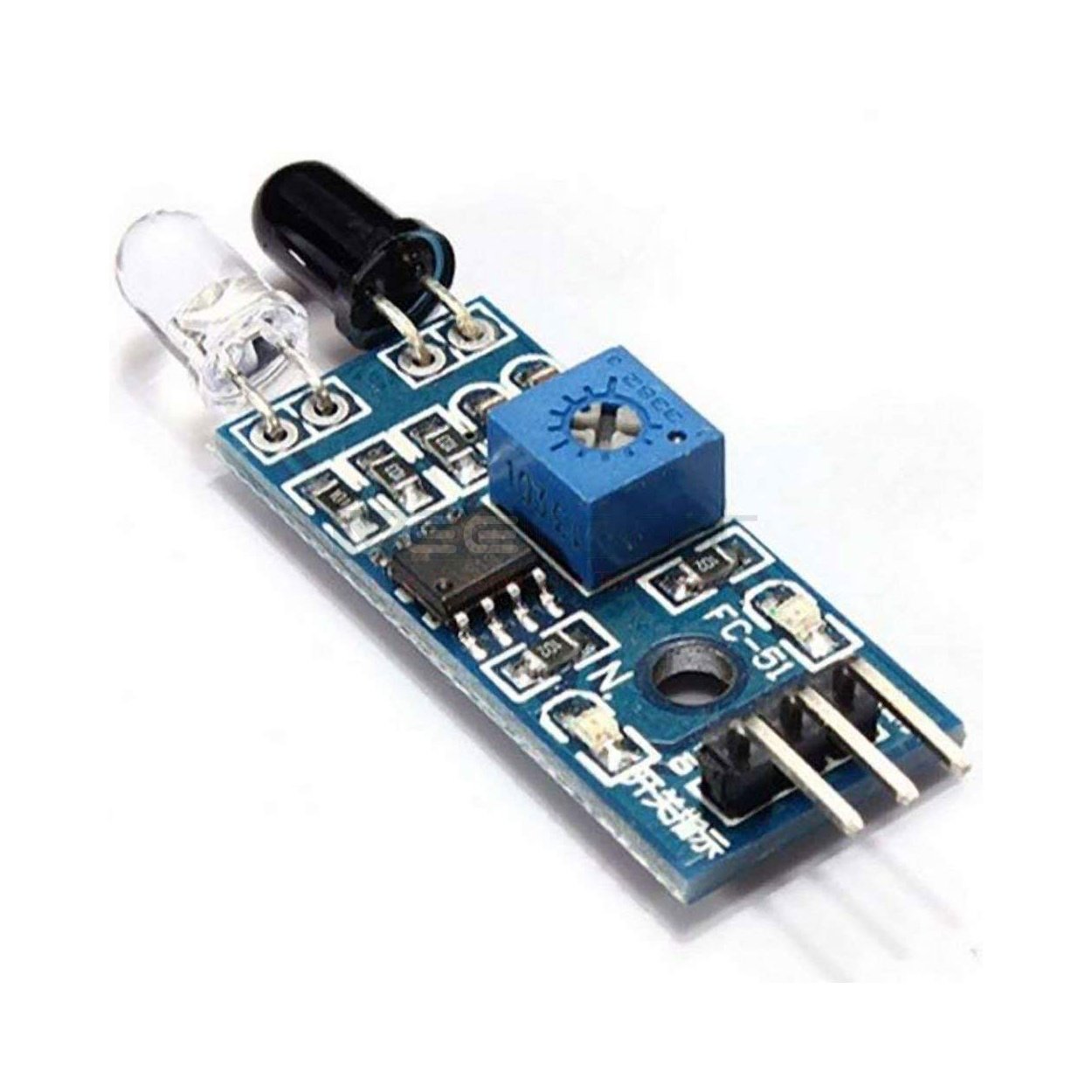

The Infrared Obstacle Detection Module (IR Sensor Module) is an ideal and efficient choice for building automation and smart robotics projects. It allows microcontrollers (such as Arduino, ESP, or Raspberry Pi) to accurately and simply detect nearby objects and obstacles without physical contact, by emitting an infrared beam and receiving its reflection when it strikes an object. Key Specifications: Adjustable Potentiometer: The board includes a built-in potentiometer that allows you to easily adjust the detection distance and sensitivity of the module according to your project needs. Detection Range: Covers a distance of 2 cm to 30 cm (adjustable), with a detection angle of approximately 35 degrees. Digital Output: Provides a simple digital signal (0 or 1) via the OUT pin. The signal level changes as soon as an obstacle is detected in front of the sensor. Operating Voltage: Operates on a wide voltage range of 3.3V to 5V DC, making it compatible with various electronic boards. LM393 Comparator Chip: Includes a high-precision comparator chip that provides stable and reliable output signal and prevents fluctuations. LED Indicators: Features a Power LED and a Signal LED that illuminates upon obstacle detection. Easy Connection (3 Pins): Requires only three pins: VCC: Power supply (3.3V - 5V). GND: Ground (0V). OUT: Digital output signal to the microcontroller.
